Absorbeur à film tombant en graphite de type à trou rond
The round block hole graphite falling film absorber efficiently cools and absorbs gases using a vertical, corrosion-resistant graphite structure with uniform liquid distribution.
Paiement:
TT L/C PayPal Westunion MoneygramOrigine du produit:
China， Anhui provincePort d'expédition:
ShanghaiDélai de mise en œuvre:
1 MonthMOQ:
1Emballer:
Wooden caseCouleur:
CustomziedMatériel:
GraphiteTempérature de travail:
≤170℃Pression de travail:
Vertical≤0.1Mpa,Horizontal≤0.4Mpa
Product review
Its structure and principle bear resemblance to those of tubular graphite falling film absorbers. Besides possessing the same characteristics as the tube-type graphite falling film absorber, it also offers the advantages of high structural strength, excellent heat shock resistance, high heat transfer efficiency, and convenient maintenance. It is a gas absorption equipment with outstanding performance.
Product advantages
The Round Block Hole Graphite Falling Film Absorber features high heat transfer efficiency, outstanding chemical corrosion resistance, good mechanical strength, uniform fluid distribution, large processing capacity, stable operation, easy maintenance, and a long service life.
Structural diagram
| Parts details | |
| 1 | Air inlet |
| 2 | Graphite gas-liquid mixing chamber |
| 3 | Liquid inlet |
| 4 | Graphite pressure stabilizing ring |
| 5 | Graphite distribution head |
| 6 | Vent |
| 7 | Cooling water outlet |
| 8 | Equipment support |
| 9 | Graphite heat exchange block |
| 10 | Cooling water inlet |
| 11 | Drain port |
| 12 | Gas liquid separation chamber |
| 13 | Tail gas outlet |
| 14 | Acid outlet |
| Model | Specifications M² | a.e Tube | b.c Tube DN | f.g Tube DN | d Tube | h Tube | |||
| D1 | D2 | D3 | D4 | D5 | D6 | ||||
| YKX30 | 5 | 50 | 145 | 50 | 20 | 100 | 210 | 65 | 160 |
| YKX40 | 10 | 65 | 160 | 50 | 20 | 150 | 295 | 75 | 180 |
| YKX50 | 12 | 75 | 180 | 65 | 20 | 200 | 350 | 100 | 210 |
| 15 | |||||||||
| YKX60 | 20 | 100 | 210 | 80 | 20 | 250 | 400 | 125 | 240 |
| 25 | |||||||||
Shell and tube graphite falling film absorbers are specialized devices used in various industrial applications for their excellent thermal and chemical resistance properties. These absorbers are designed to efficiently absorb gases while providing effective cooling and separation processes.
Détails
The Shell and Tube Graphite Falling Film Absorber efficiently absorbs gases using corrosion-resistant graphite, ensuring uniform liquid distribution and optimal heat transfer.
Détails
The New Round Block Hole Graphite Falling Film Absorber efficiently absorbs gases using graphite blocks with hole structures, enhancing heat and mass transfer.
Détails
The shell-and-tube silicon carbide heat exchanger is composed of silicon carbide tubes sealed with tube sheets to form a tube bundle placed inside a cylindrical shell. Ends are equipped with end caps. One fluid flows inside the tubes and the other outside. It's suitable for highly corrosive chemicals, used for cooling, heating, condensation, etc.
Détails
The no-leakage fluorine-lined magnetic pump is characterized by its high corrosion resistance, which is attributed to the fluorine lining. The magnetic drive mechanism ensures a hermetic seal, preventing any leakage, and making it suitable for a wide range of fluid transfer applications.
Détails
La pompe à eaux usées auto-amorçante et anti-colmatage de la série ZW est un produit nouvellement structuré développé avec succès sur la base de recherches répétées sur des technologies nationales et étrangères similaires.
Détails
Pompe pneumatique à membrane étanche QBK : compacte, résistante à la corrosion, économe en énergie, idéale pour le transfert de produits chimiques. Aucune fuite, faible entretien, robustesse pour les environnements difficiles.
Détails

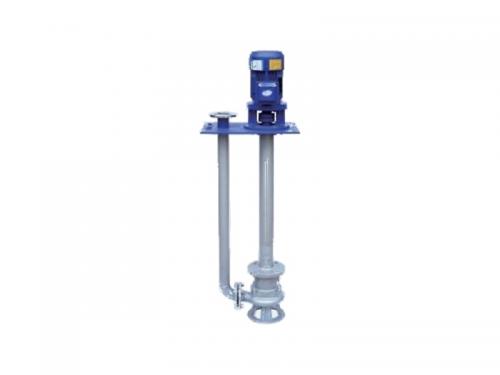

Robust dual-pipe design handles heavy solids effortlessly. Fully submersible, corrosion-resistant construction ensures reliable wastewater drainage in harsh environments.
