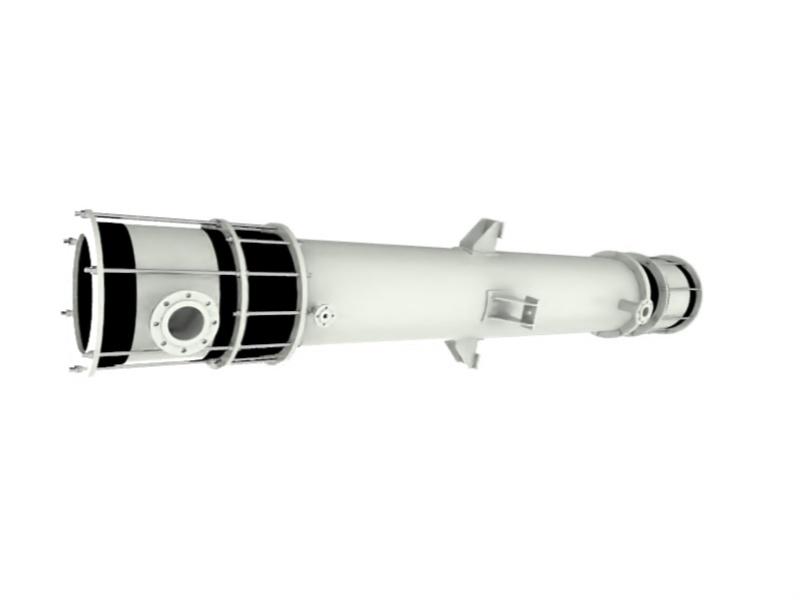

Absorbeur industriel à film tombant en graphite, type calandre et faisceau tubulaire
Shell and tube graphite falling film absorbers are specialized devices used in various industrial applications for their excellent thermal and chemical resistance properties. These absorbers are designed to efficiently absorb gases while providing effective cooling and separation processes.
Paiement:
TT L/C PayPal Westunion MoneygramOrigine du produit:
China， Anhui provinceCouleur:
whitePort d\'expédition:
shanghaiDélai de mise en œuvre：
1 monthMOQ:
1Emballer:
wooden caseCouleur:
whiteMatériel:
graphiteTempérature de travail:
≤170℃Pression de travail:
Tube≤0.1MPa Shell≤0.3MPa
Product review
This equipment primarily consists of a liquid distributor, a cooling and absorption section, and a gas-liquid separator. It features high absorption efficiency, high absorption intensity, high product acid concentration, low outlet temperature, convenient operation and control, and the absence of the need to cool and dry the raw gas.
Parts Details
| 1 | Parts details | 10 | Graphite sieve plate |
| 2 | Concentrated acid inlet | 11 | Cooling water outlet |
| 3 | Dilution water inlet | 12 | Vent |
| 4 | Upper cover plate of equipment | 13 | Equipment support |
| 5 | Graphite upper head | 14 | Shell |
| 6 | Cooling water outlet | 15 | Graphite heat exchange block |
| 7 | Graphite mixing chamber cylinder | 16 | Drain port |
| 8 | Graphite mixing outdoor cylinder | 17 | Cooling water inlet |
| 9 | Cooling water inlet | 18 | Graphite lower head |
Structure Size
| Model | D | n-Φ | H | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | H9 | L1 | L2 | L3 | L4 |
| GX245-3 | 553 | 2-18 | 4254 | 380 | 355 | 1521 | 464 | 185 | 270 | 285 | 825 | 300 | 273 | 273 | 259 | 276 |
| GX300-5 | 572 | 2-18 | 4309 | 380 | 365 | 1566 | 494 | 200 | 305 | 295 | 825 | 300 | 308 | 303 | 286 | 304 |
| GX 350-10 | 623 | 2-23 | 4374 | 380 | 365 | 1631 | 534 | 225 | 350 | 315 | 835 | 300 | 333 | 328 | 310 | 329 |
| GX 450-15 | 725 | 2-23 | 4496 | 400 | 375 | 1713 | 599 | 257 | 402 | 345 | 885 | 300 | 383 | 378 | 370 | 379 |
| GX 500-20 | 775 | 2-23 | 4591 | 400 | 395 | 1798 | 644 | 297 | 477 | 355 | 905 | 300 | 415 | 405 | 407 | 404 |
| GX 550-25 | 826 | 2-30 | 4658 | 400 | 395 | 1865 | 709 | 299 | 499 | 400 | 905 | 300 | 451 | 446 | 432 | 429 |
| GX 600-30 | 898 | 4-30 | 4793 | 400 | 445 | 1920 | 749 | 354 | 539 | 416 | 950 | 300 | 476 | 471 | 460 | 456 |
| GX 650-35 | 948 | 4-30 | 4920 | 470 | 475 | 1947 | 769 | 361 | 546 | 439 | 1055 | 375 | 501 | 496 | 491 | 481 |
| GX 700-40 | 998 | 4-30 | 5025 | 470 | 485 | 2042 | 2042 | 844 | 391 | 476 | 1075 | 375 | 531 | 521 | 516 | 506 |
| GX 800-50 | 1099 | 4-30 | 5102 | 470 | 485 | 2119 | 894 | 418 | 653 | 506 | 1105 | 375 | 581 | 571 | 566 | 556 |
| GX 850-60 | 1150 | 4-30 | 5240 | 540 | 500 | 2180 | 920 | 450 | 680 | 520 | 1190 | 540 | 651 | 631 | 620 | 581 |
| GX 900-80 | 1200 | 4-30 | 5300 | 540 | 520 | 2240 | 960 | 480 | 700 | 540 | 1210 | 540 | 702 | 682 | 670 | 608 |
| GX 1000-100 | 1300 | 4-30 | 5360 | 540 | 540 | 2320 | 1000 | 520 | 720 | 560 | 1230 | 540 | 804 | 784 | 770 | 658 |
| GX 1100-120 | 1433 | 4-30 | 5400 | 540 | 560 | 2400 | 1060 | 560 | 740 | 580 | 1250 | 540 | 906 | 886 | 870 | 708 |
Applications
Industrial Use: Commonly used in industries such as chemical processing, pharmaceuticals, and environmental protection for gas absorption and cooling processes.
Gas Absorption: Particularly effective for absorbing gases like HCl, SO2, NH3, P2O5, and H2S, making it a valuable tool in pollution control and waste gas treatment.
Others
The round block hole graphite falling film absorber efficiently cools and absorbs gases using a vertical, corrosion-resistant graphite structure with uniform liquid distribution.
