Absorbeur à film tombant en graphite de type à trou rond
The round block hole graphite falling film absorber efficiently cools and absorbs gases using a vertical, corrosion-resistant graphite structure with uniform liquid distribution.
Paiement:
TT L/C PayPal Westunion MoneygramOrigine du produit:
China， Anhui provincePort d'expédition:
ShanghaiDélai de mise en œuvre:
1 MonthMOQ:
1Emballer:
Wooden caseCouleur:
CustomziedMatériel:
GraphiteTempérature de travail:
≤170℃Pression de travail:
Vertical≤0.1Mpa,Horizontal≤0.4Mpa
Product review
Its structure and principle bear resemblance to those of tubular graphite falling film absorbers. Besides possessing the same characteristics as the tube-type graphite falling film absorber, it also offers the advantages of high structural strength, excellent heat shock resistance, high heat transfer efficiency, and convenient maintenance. It is a gas absorption equipment with outstanding performance.
Product advantages
The Round Block Hole Graphite Falling Film Absorber features high heat transfer efficiency, outstanding chemical corrosion resistance, good mechanical strength, uniform fluid distribution, large processing capacity, stable operation, easy maintenance, and a long service life.

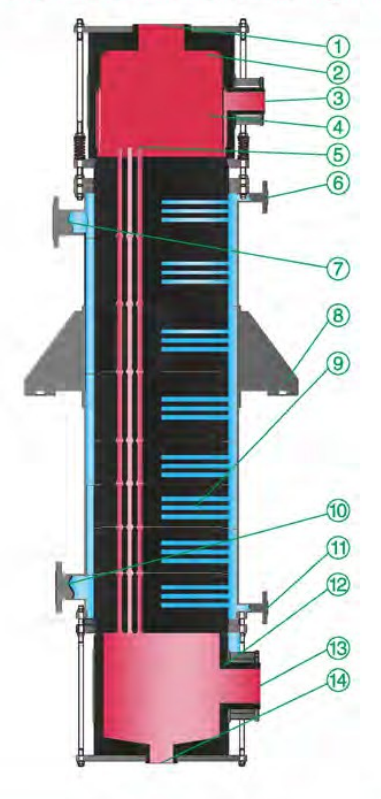

Structural diagram
| Parts details | |
| 1 | Air inlet |
| 2 | Graphite gas-liquid mixing chamber |
| 3 | Liquid inlet |
| 4 | Graphite pressure stabilizing ring |
| 5 | Graphite distribution head |
| 6 | Vent |
| 7 | Cooling water outlet |
| 8 | Equipment support |
| 9 | Graphite heat exchange block |
| 10 | Cooling water inlet |
| 11 | Drain port |
| 12 | Gas liquid separation chamber |
| 13 | Tail gas outlet |
| 14 | Acid outlet |
| Model | Specifications M² | a.e Tube | b.c Tube DN | f.g Tube DN | d Tube | h Tube | |||
| D1 | D2 | D3 | D4 | D5 | D6 | ||||
| YKX30 | 5 | 50 | 145 | 50 | 20 | 100 | 210 | 65 | 160 |
| YKX40 | 10 | 65 | 160 | 50 | 20 | 150 | 295 | 75 | 180 |
| YKX50 | 12 | 75 | 180 | 65 | 20 | 200 | 350 | 100 | 210 |
| 15 | |||||||||
| YKX60 | 20 | 100 | 210 | 80 | 20 | 250 | 400 | 125 | 240 |
| 25 | |||||||||
