Un échangeur de chaleur à plaques métalliques transfère la chaleur entre les fluides à l'aide de plaques métalliques ondulées pour un échange thermique efficace.
Paiement:
TT L/C PayPal Westunion MoneygramOrigine du produit:
China， Anhui provincePort d'expédition:
ShanghaiDélai de mise en œuvre:
1 MonthMOQ:
1Emballer:
Wooden caseCouleur:
CustomziedMatériel:
Metal
Product review
The BKH plate heat exchanger is a type of heat exchange equipment consisting of a set of corrugated meta-plates. These plates have four corner holes, which enable two types of cold and heat media for heat exchange to pass through. It is a detachable plate heat exchanger, made up of plates, bolts, clamping plates, flanges, floor corners, and sealing gaskets.
Product advantages
The BKH plate heat exchanger consists of a heat transfer corrugated plate and a frame. The plates are clamped between the fixed pressing plate and the movable pressing plate with the help of bolts. Numerous flow channels are formed within the heat exchanger, and the plates are sealed using rubber.The pressure plate is equipped with connecting pipes that link the equipment to the exterior. The plate is made of a corrosion-resistant metal sheet. The four corners of the plate are punched with corner holes, which serve as the inlets and outlets for the medium. Additionally, there are hanging holes at the top and bottom.The herringbone ripple pattern can enhance the disturbance of the fluid, enabling the fluid to reach a turbulent state even at a low speed, thereby achieving a high heat transfer effect. A special structure is employed to ensure that there will be no leakage between the two fluid media.

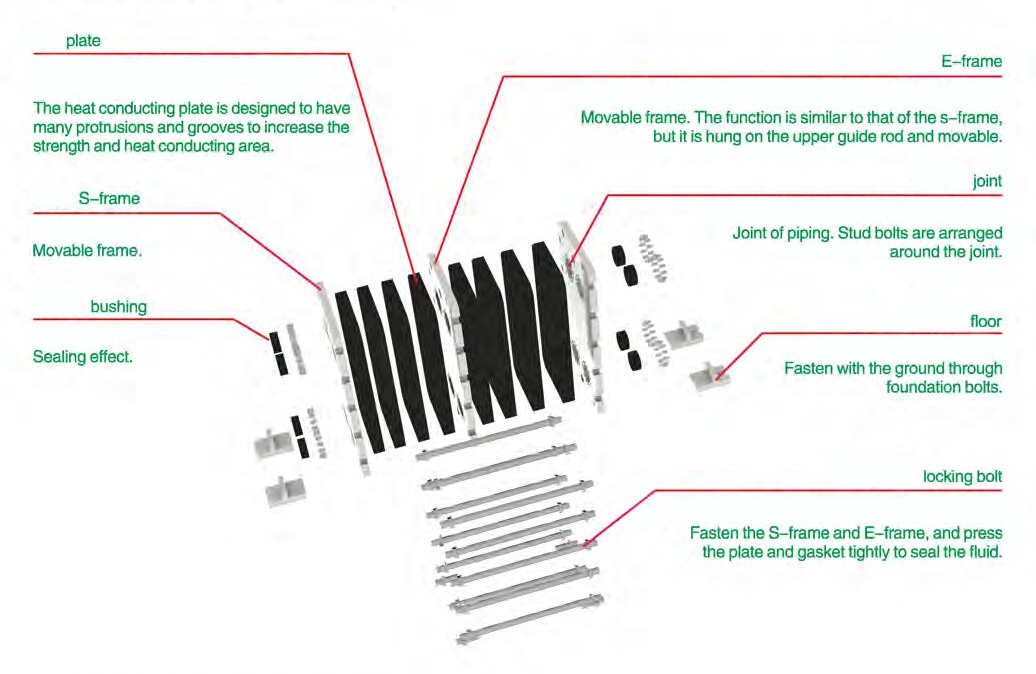

Structural diagram
Equipment parameter table
| Model | Pipe Size mm | Max assembly area m² | Max processing capacity m³/h | Single Max weight Kg |
| BKH07 | 32 | 7 | 20 | 105 |
| BKH15 | 65 | 30 | 70 | 400 |
| BKH25 | 65 | 25 | 80 | 830 |
| BKH35 | 100 | 50 | 200 | 1200 |
| BKH36 | 125 | 60 | 250 | 1250 |
| BKH55 | 200 | 180 | 400 | 1640 |
| BKH60 | 150 | 180 | 650 | 3500 |
| BKH100 | 200 | 300 | 800 | 3500 |
| BKH160 | 300 | 800 | 2300 | 4773 |
Others
L'échangeur de chaleur en graphite à cage d'écureuil présente une conception unique. Fabriqué en graphite durable, il offre d'excellentes performances de transfert thermique, garantissant un chauffage ou un refroidissement efficace des fluides, un fonctionnement fiable et une longue durée de vie.
Détails
Spherical block hole type graphite heat exchanger, a highly durable and efficient heat transfer apparatus commonly employed in various industrial sectors such as chemical, petrochemical, and pharmaceutical industries for precise temperature control and effective heat exchange.
Détails
The shell-and-tube silicon carbide heat exchanger is composed of silicon carbide tubes sealed with tube sheets to form a tube bundle placed inside a cylindrical shell. Ends are equipped with end caps. One fluid flows inside the tubes and the other outside. It's suitable for highly corrosive chemicals, used for cooling, heating, condensation, etc.
Détails
Rectangular Hole Type Graphite Heat Exchanger: A heat transfer device with a rectangular hole pattern in graphite. It offers high thermal conductivity, excellent chemical resistance, and efficient fluid flow for reliable heat exchange in various industrial applications.
Détails
A floating head shell-and-tube graphite heat exchanger is a highly efficient and reliable heat transfer device. It consists of a shell, tubes, a floating head, and other components.
Détails
The tubular graphite heat exchanger is a type of heat transfer equipment fabricated from graphite. It exhibits excellent corrosion resistance and is extensively utilized in industries such as chemical and petrochemical for highly efficient heat exchange processes.
Détails
Rectangular Hole Type Graphite Heat Exchanger: A heat transfer device with a rectangular hole pattern in graphite. It offers high thermal conductivity, excellent chemical resistance, and efficient fluid flow for reliable heat exchange in various industrial applications.
Détails
A floating head shell-and-tube graphite heat exchanger is a highly efficient and reliable heat transfer device. It consists of a shell, tubes, a floating head, and other components.
Détails
